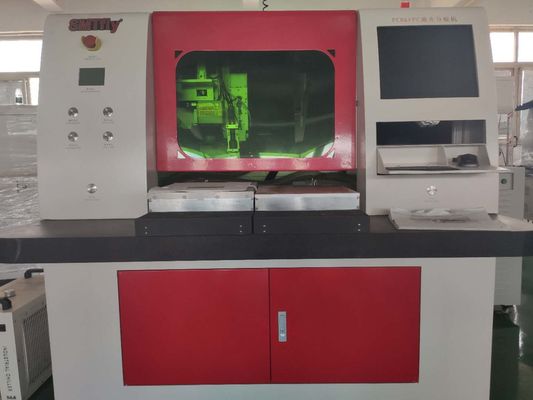

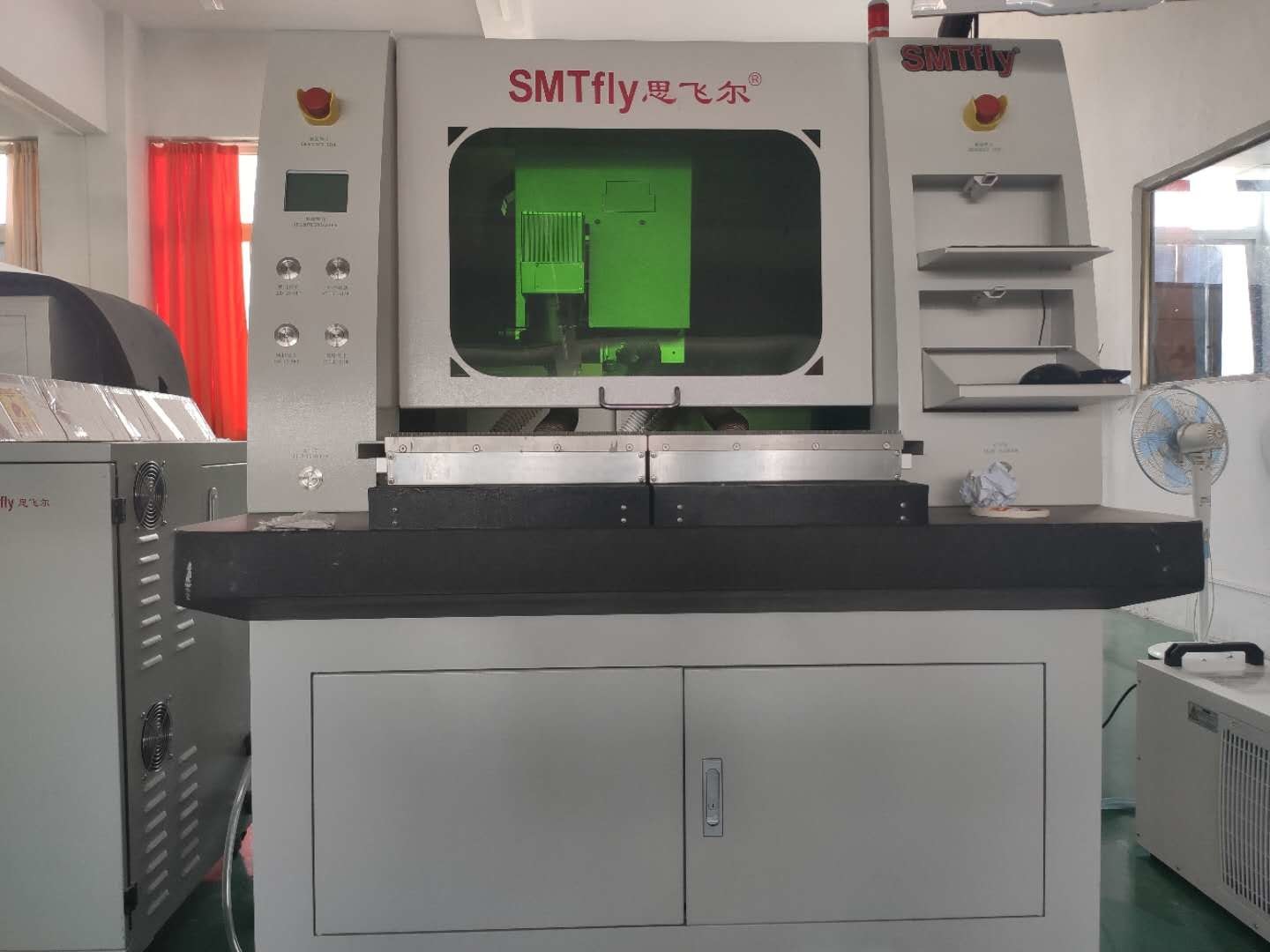

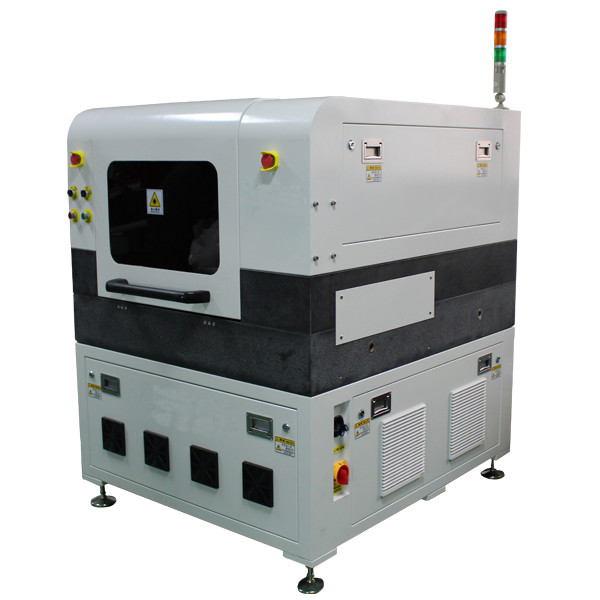

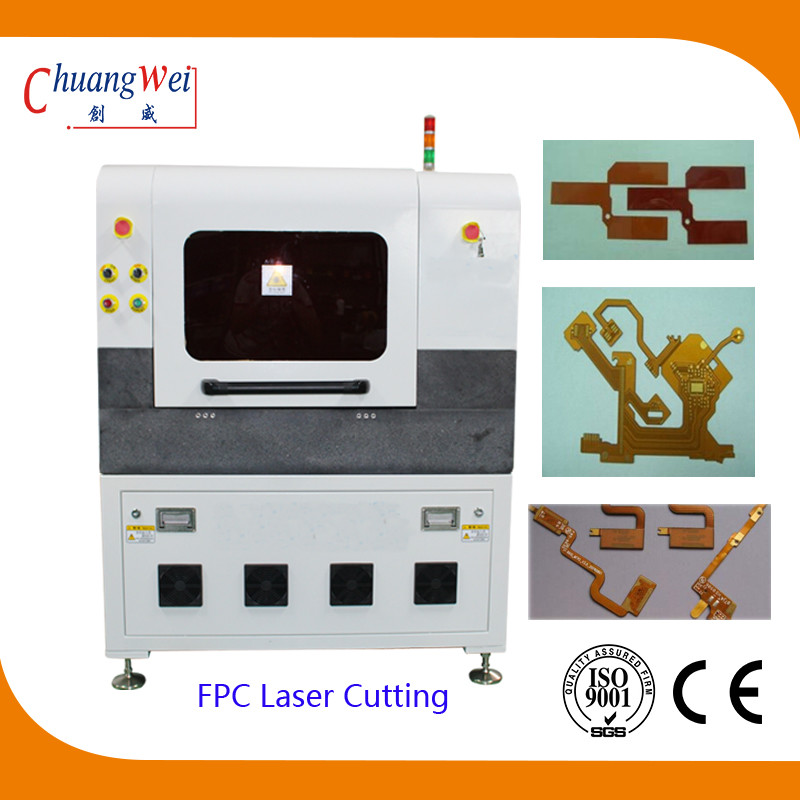

New Item Automatic PCB Laser Separator 0.02 Cutting Accuracy with CE Certification
1. High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries;
2. Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
3. Reduce energy consumption, Cost savings;
4. Cost-effective, fast cutting speed, stable performance;
5. Alternate use of double workbench, significant capacity increase;
6. Cutting stress is "0" to avoid damage to PCBA;
| Model | SMTfly-LJ330B |
| Laser Brand | USA Optowave |
| Laser Rate | Solid-State UV Laser |
| Laser Wavelength | 335nm |
| Laser Power | 10/12/15W |
| Positioning Precision | ±2μm |
| Repetition Precision | ±1μm |
| Working Area | 600*600mm |
| Laser Scanning Speed | 2500mm/s (max) |
| Machine Weight | 1500kgs |
| Machine size | 1350*1150*1550mm |
Packaging Details: Wooden case
Port : Shenzhen
Lead Time : 5-7 days after getting your payment
After the completion of the machine, the fuselage shall be protected and wrapped with plastic film to avoid damage caused by collision of goods during export transportation.
We will measure the size of the machine customized by the customer, then customize a wooden box, so that the machine and the size of the wooden box are just right.
After the customization of wooden boxes, we use wooden boxes for export, wooden boxes are strong, suitable for export machinery and other heavy objects, to protect them..
A. Pre-consultation:provides professional SMT solution for the full line;
B. Factory Warranty:One-year warranty factory service;
C. Installation:On-site installation and commissioning,to ensure smooth production;
D. Technical Training:provides professional training from level 1 to level 3;
ChuangWei Electronic Equipment Manufactory
For 16 years we have been desiging different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.
Up to now ChuangWei have became one of the biggest PCB separator production base in China.
Q :What is your Warranty for the product? How do you carry out it?
A :We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
Q : What’s the leading time? (How long do you need to prepare my goods?)
A :1-3 working days for sample orders 3-20 working days for bulk order (based on different quantities).
Q : Can you put my brand name (logo) on the product?
A :Yes! We can provide professional OEM services to make it your brand even for your trial sample order.
Q: If we come to your factory, you will provide the free training ?
A:Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Q : What payment method do you accept?
A : T/T(Bank transfer), Western Union, Paypal, etc.
Q:Do you provide the user manual and operating videos to support us ?
A:We will provide the English user manual for free , and the operation video is available.Our software is all English.
Q:What service you can provide when we have some problem during the operation?
A:We can invite our engineers to your company for guidance, but you are responsible for the air tickets and accommodation,we can also provide remote guidance
Q : Are you just trading company or factory?
A : We are professional manufacturer for automation machine since 2004.
