High Precision Pcb Depaneling Equipment All Solid State UV Laser 355nm

1 σύνολο
MOQ
Negotiable
τιμή
High Precision Pcb Depaneling Equipment  All Solid State UV Laser 355nm
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
ΟΝΟΜΑ: PCB Depaneler λέιζερ
Βάρος: 850KGS
Ναυτιλία: FOB / EXW
Λέιζερ: ΑΜΕΡΙΚΑΝΙΚΟ εμπορικό σήμα Optowave
Δύναμη: 220v 380v
Εξουσιοδότηση: 1 έτος
Υψηλό φως:

desiccant dry cabinets

,

dry storage cabinets

Βασικές πληροφορίες
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: chuangwei
Πιστοποίηση: CE
Αριθμό μοντέλου: Cwvc-6
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: Περίπτωση κοντραπλακέ
Χρόνος παράδοσης: 1-3 ημέρες εργασίας
Όροι πληρωμής: T/T, Western Union, L/C
Δυνατότητα προσφοράς: 260 σύνολα το μήνα
Περιγραφή προϊόντων

High Precision Pcb Depaneling Equipment All Solid State UV Laser 355nm Industrial PCB Laser Depaneling



PCB depaneling (singulation) laser machines and systems have been gaining popularity over recent years. Mechanical depanaling/singulation is done with routing, die cutting, and dicing saw methods. However, as the boards get smaller, thinner, flexible, and more sophisticated, those methods produce even more exaggerated mechanical stress to the parts. Large boards with heavy substrates absorb these stresses better, while these methods used on ever-shrinking and complex boards can result in breakage. This brings lower throughput, along with the added costs of tooling and waste removal associated with mechanical methods.

Increasingly, flexible circuits are found in the PCB industry, and they also present challenges to the old methods. Delicate systems reside on these boards and non-laser methods struggle to cut them without damaging the sensitive circuitry. A non-contact depaneling method is required and lasers provide a highly precise way of singulation without any risk of harming them, regardless of substrate.



Challenges of Depaneling Routing



  • Damages and fractures to substrates and circuits due to mechanical stress
  • Damages to PCB due to accumulated debris
  • Constant need for new bits, custom dies, and blades
  • Lack of versatility – each new application requires ordering of custom tools, blades, and dies
  • Not good for high precision, multi-dimensional or complicated cuts
  • Not useful PCB depaneling/singulation smaller boards
  •
  • Lasers, on the other hand, are gaining control of the PCB depaneling/singulation market due to higher precision, lower stress on the parts, and higher throughput. Laser depaneling can be applied to a variety of applications with a simple change in settings. There is no bit or blade sharpening, lead time reordering dies and parts, or cracked/broken edges due to torque on the substrate. Application of lasers in PCB depaneling is dynamic and a non-contact process.



Specification



Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/17W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 300mmX300mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm

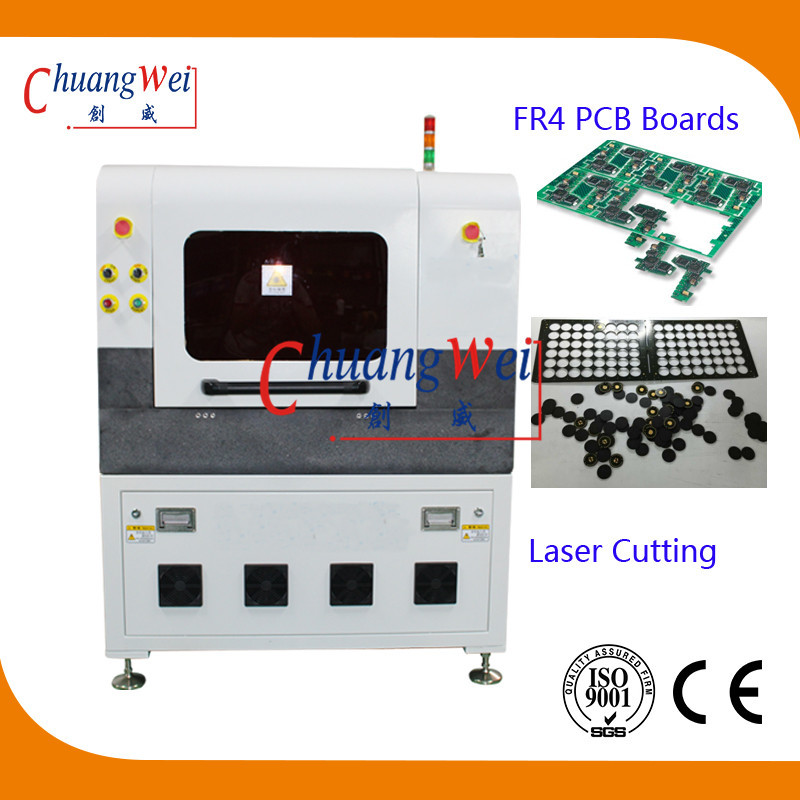

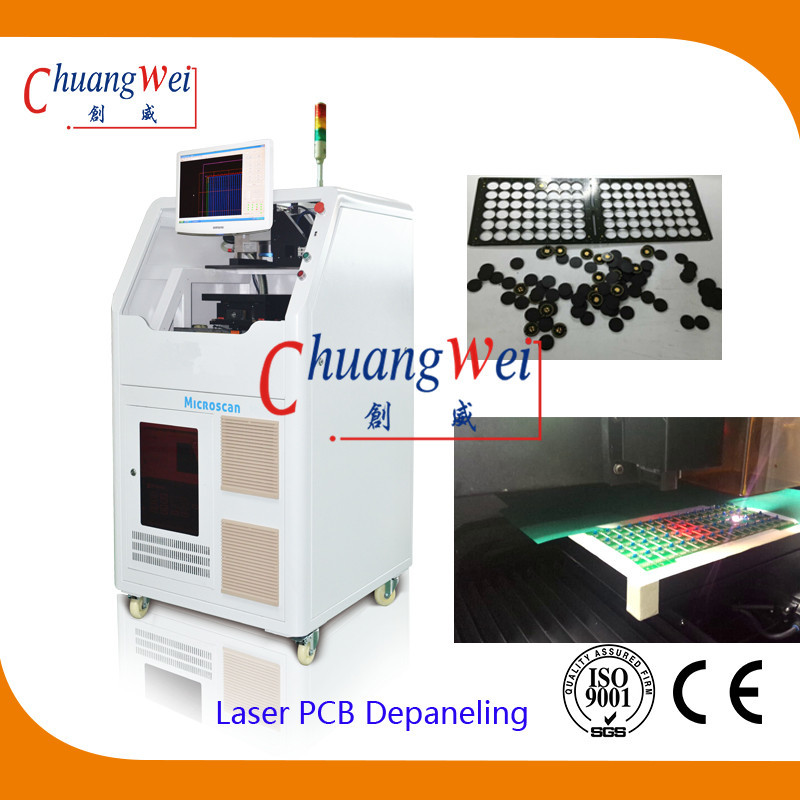

 High Precision Pcb Depaneling Equipment  All Solid State UV Laser 355nm 0            High Precision Pcb Depaneling Equipment  All Solid State UV Laser 355nm 1
