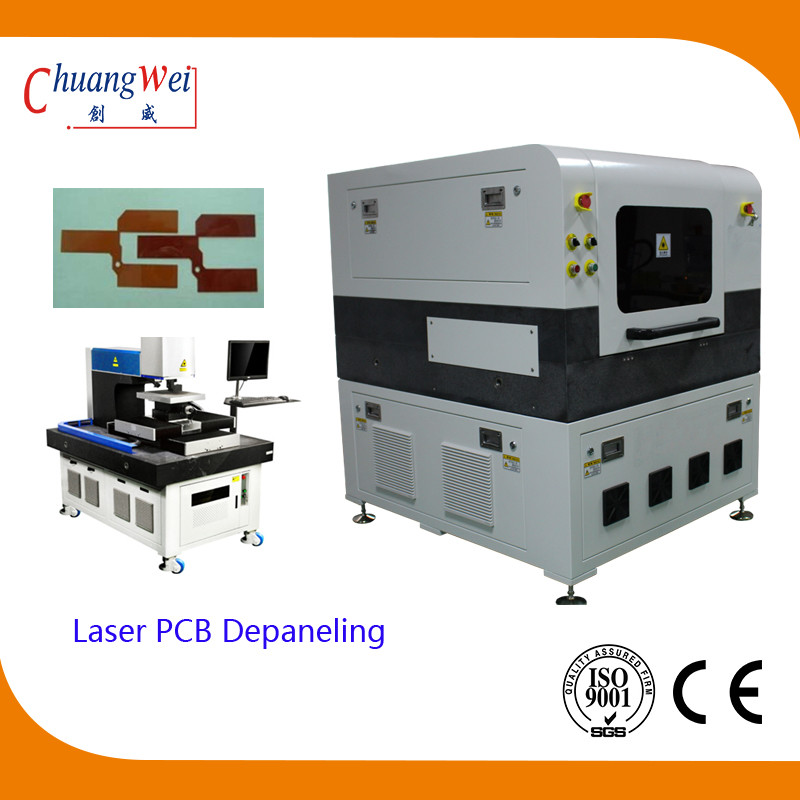

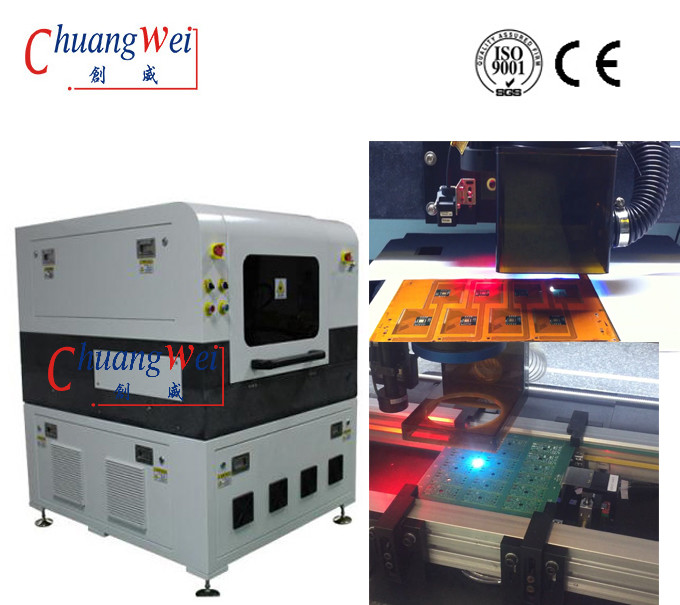

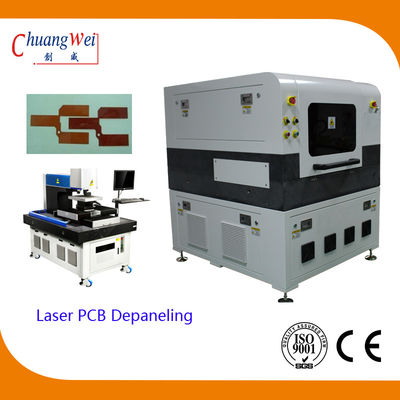

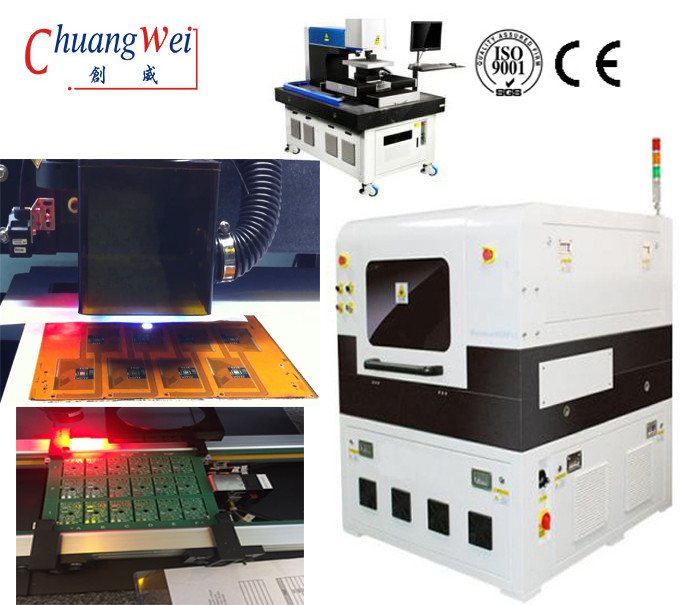

Printed Circuit Board PCB Depaneling Laser UV Cutting Machine
The demand for small, hand-held electronics with more features is driving smaller, thinner, and more dense flex and rigid printed circuit boards (PCBs).
Depaneling, or the laser singulation of printed circuit boards, offers numerous advantages to a traditional bit router or mechanical saw, including:
Specification
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Power | 10W/12W/15W/18W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 400mmX300mm(Customizable) |
| Laser Scanning Speed | 2500mm/s (max) |
| Galvanometer Working Field Per One Process | 40mmх40mm |
High Effective Laser Source
